Sign-in providers

Create OAuth clients for Google, Microsoft and Zoho so users can connect Gmail, Outlook, Zoho Mail and their calendars and drives.

Users connect Google, Microsoft and Zoho accounts by signing in to the provider and giving Metis Suite permission. For that, your instance needs its own OAuth client (an app registration) at each provider you want to offer. Only providers you configure appear in the connect dialog.

Provider What users can connect
Google Gmail, Google Calendar and Google Drive
Microsoft Outlook, Outlook Calendar and OneDrive
Zoho Zoho Mail and Zoho Calendar

Find your redirect URI

Each provider needs to know where to send users back after they sign in. Open Dashboard, System, then the provider’s page under Providers. The OAuth client card shows the Redirect URI. Register it in the provider’s console exactly as shown.

The redirect URI has this form, with your app’s address at the start:

https://mail.example.com/api/connections/google/callback
https://mail.example.com/api/connections/microsoft/callback
https://mail.example.com/api/connections/zoho/callback

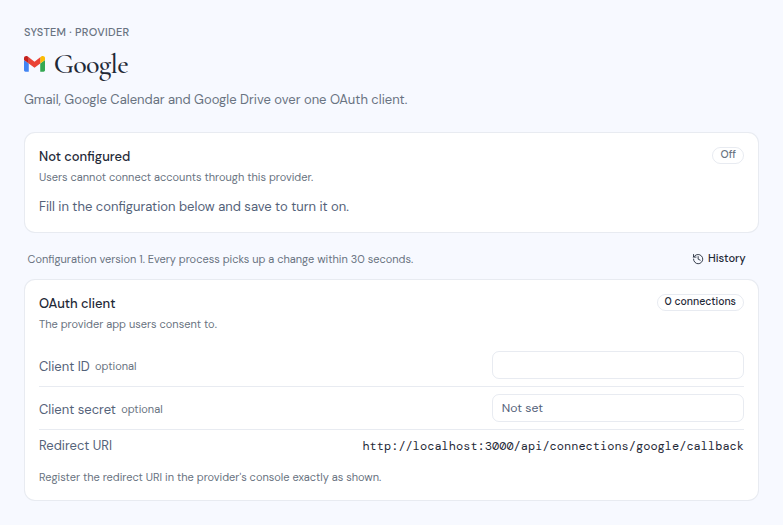

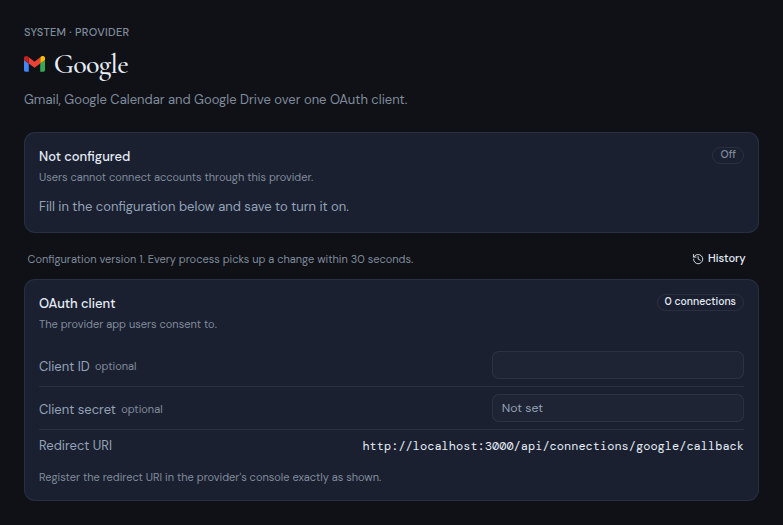

The Google provider page, not yet configured, with the OAuth client card and its redirect URI

Create the OAuth client

In the Google Cloud console:

  1. Create a project, or pick an existing one.
  2. Enable the Gmail API, the Google Calendar API and the Google Drive API.
  3. Set up the OAuth consent screen.
  4. Create an OAuth client ID of type Web application, and add your redirect URI as an authorized redirect URI.
  5. Copy the client ID and the client secret.

Metis Suite asks users for these permissions, depending on what they connect: openid, email and profile; gmail.modify and gmail.send for mail; calendar for calendars; drive for drives.

In the Microsoft Entra admin center:

  1. Create a new app registration.
  2. For supported account types, choose accounts in any organizational directory and personal Microsoft accounts. Metis Suite signs users in through Microsoft’s common endpoint, which serves both.
  3. Add a Web platform with your redirect URI.
  4. Create a client secret, and copy its value along with the application (client) ID.

Metis Suite asks users for these Microsoft Graph permissions, depending on what they connect: openid, email, profile, User.Read and offline_access; Mail.ReadWrite and Mail.Send for mail; Calendars.ReadWrite for calendars; Files.ReadWrite for drives.

In the Zoho API console for your region:

  1. Add a server-based application.
  2. Add your redirect URI as an authorized redirect URI.
  3. Copy the client ID and the client secret.

Set the Region to the data center your users’ Zoho accounts live in: com (the default), in, eu, com.au or jp.

Metis Suite asks users for AaaServer.profile.READ; ZohoMail.messages.ALL, ZohoMail.folders.ALL and ZohoMail.accounts.READ for mail; and ZohoCalendar.calendar.ALL and ZohoCalendar.event.ALL for calendars.

Add the client to Metis Suite

  1. Open Dashboard, System, then the provider under Providers.
  2. Enter the Client ID and Client secret. For Zoho, also pick the Region.
  3. Click Save changes and enter your authenticator code.
  4. In the Health card, click Run check. It confirms the provider accepts your client ID and secret.

You can also set the starting values before the first start, with GOOGLE_CLIENT_ID and GOOGLE_CLIENT_SECRET, MICROSOFT_CLIENT_ID and MICROSOFT_CLIENT_SECRET, or ZOHO_CLIENT_ID, ZOHO_CLIENT_SECRET and ZOHO_REGION. After the first start, change them in the dashboard.
